and a little assist for the oiling

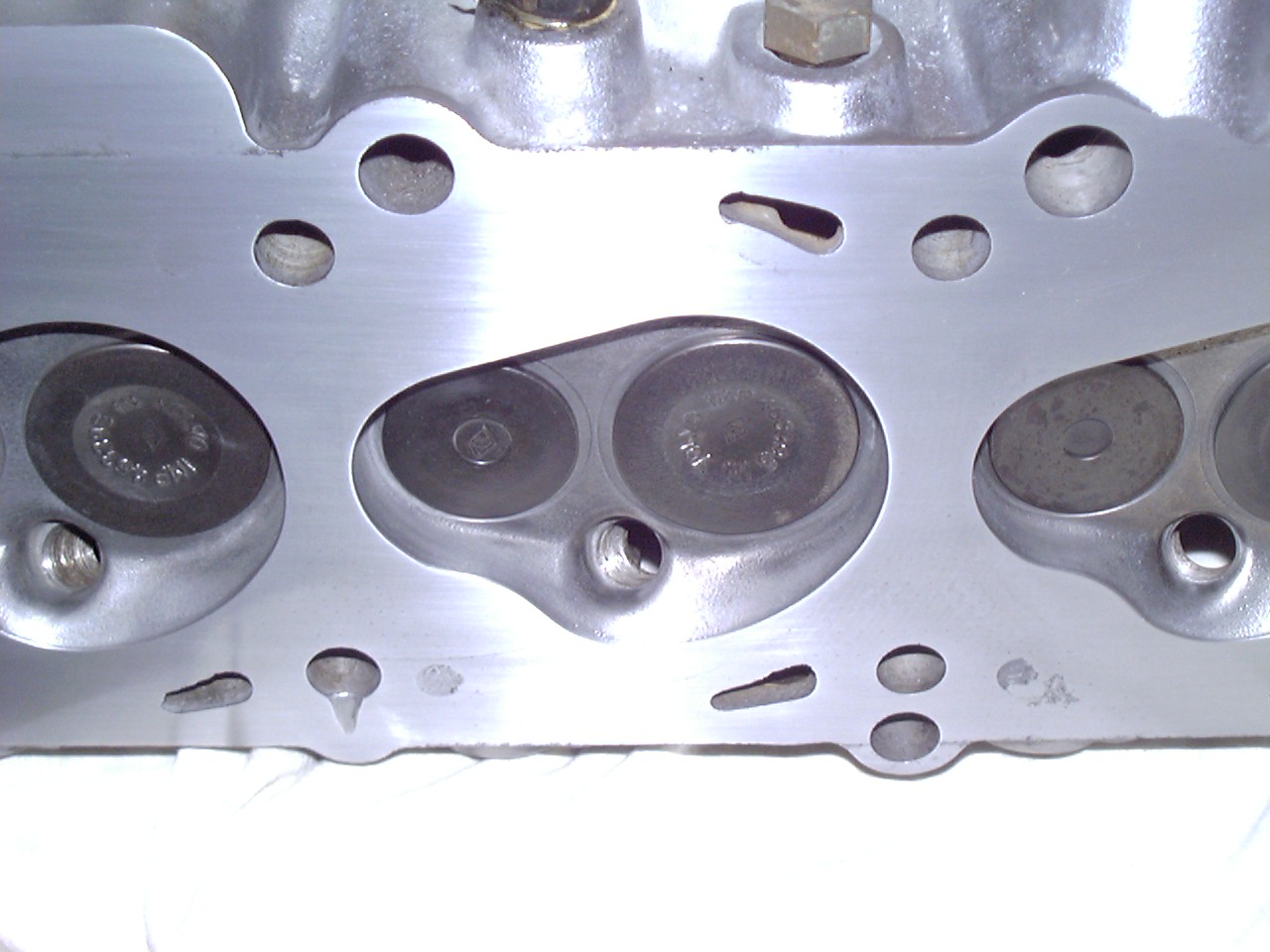

because the new head gasket is thinner than the stock HG, I decided to add a bit of a groove at the #2 cylinder headbolt opening to make sure that there was sufficient passage size for the oil feed to the cylinder head. Later castings have that area drilled for oil flow; I added it to this one.
