Oil Lines - Engine Compartment
If you want to learn more about how the 914-6 GT lubrication system is connected, these photos will guide you
https://pbase.com/9146gt/gt_oil_lines_install_samples
Paying close attention

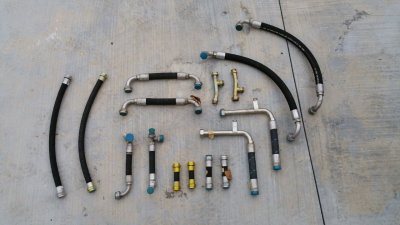

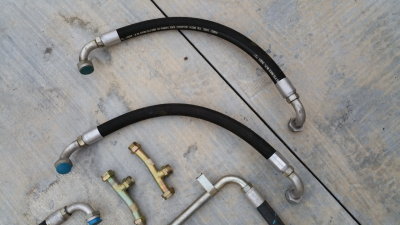

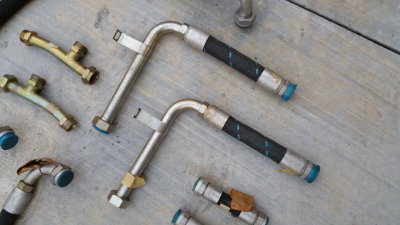

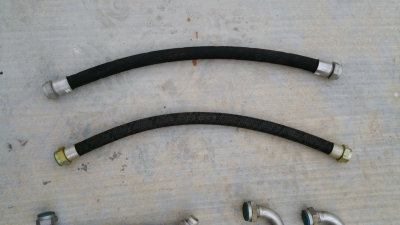

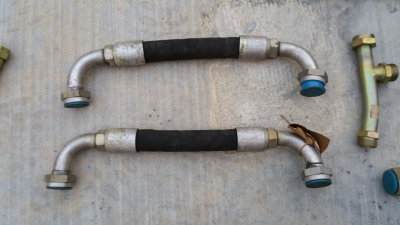

to the photos, you should be able to identify each of the factory oil lines
https://pbase.com/9146gt/image/22320662
and connections among all the components.
I'll start by identifying the location of each of the oil lines found in the engine bay of a 914-6 GT
with the shortest
https://pbase.com/9146gt/image/22320652
of the group, see here
https://pbase.com/9146gt/image/22288803
- Note in this installation how the oil line is kinked,
https://pbase.com/9146gt/image/26185312
obviously somethine you want to avoid if possible. It is highly recommended to first do a mock-up installation of all of the system components prior to welding in place the oil thermostat mounting bracket
https://pbase.com/9146gt/image/25727777
to the left firewall in the engine bay. This is critical, very important to achieve a good fit. Next, can you spot the short steel oil line in this photo?
https://pbase.com/9146gt/image/22320664
- Now, look more closely at the lower right corner of this picture
https://pbase.com/9146gt/image/22288802,
hidden just under the front engine sheet metal, this oil line is difficult to see and usually its presence is missed by most. This oil line
https://pbase.com/9146gt/image/22320659
connects to the 3rd threaded port of this oil line
https://pbase.com/9146gt/image/22320663
- In this photo
https://pbase.com/9146gt/image/89779411
the oil line was connected to an oil port located on the face of the oil console. This oil line is then snaked through a hole in the engine bay sheet metal, then to a long brass oil line (the oil return line coming from the front mounted oil cooler). Can you also spot this other oil line
https://pbase.com/9146gt/image/22320663
in this photo?
https://pbase.com/9146gt/image/22288807
No look closely here
https://pbase.com/9146gt/image/22288804
This particular oil line
https://pbase.com/9146gt/image/22320660
is located towards the bottom of the external oil tank and connects at one end to the engine oil cooler, see here
https://pbase.com/9146gt/image/128387754
note the incorporated mounting bracket, used to secure the oil line to a stud in the engine. The longest oil line
https://pbase.com/9146gt/image/22320661
of this group is much easier to ID and it is found here
https://pbase.com/9146gt/image/32772639
In the future, using sample installation photos of my GT conversion project, I plan to continue to add more useful and relevant content. In the meantime, I hope you find these photographic details helpful in your very own 914-6 GT project.

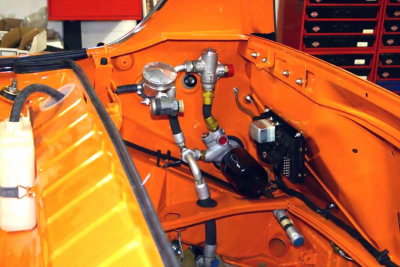

The Luthansa 914-6 GT Engine Bay showing placement of oil-lines
an 'excellent' reproduction!

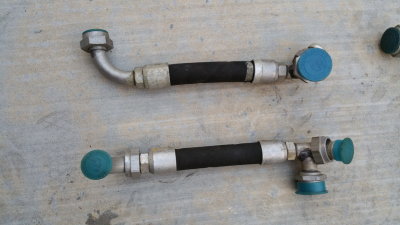

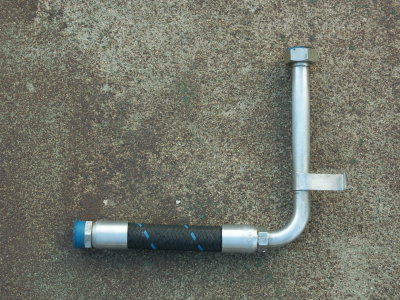

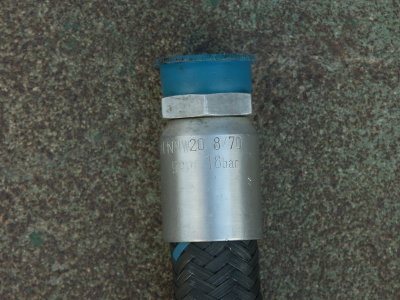

914-6 GT "L" Oil-Line - Photo 1

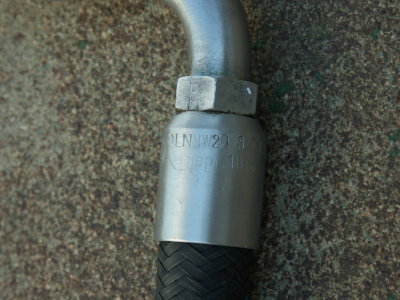

914-6 GT "L" Oil-Line - Photo 2
914-6 GT "L" Oil-Line - Photo 3
