29-AUG-2010

Flash Pinouts label 1088a.jpg


I have done a little. The power is easy. I think there may be a SPI serial interface so that the connector has multi functions depending on what is plugged into it.
So maybe not directly easy to pull a synch signal off as you would on a Sony/Minolta flash connector.

To study further I would rig a connector with the flash installed so you can hook up an oscilloscope to sniff for signals when the flash is fired.
An adapter would probably need an IC to emulate the SPI protocol.

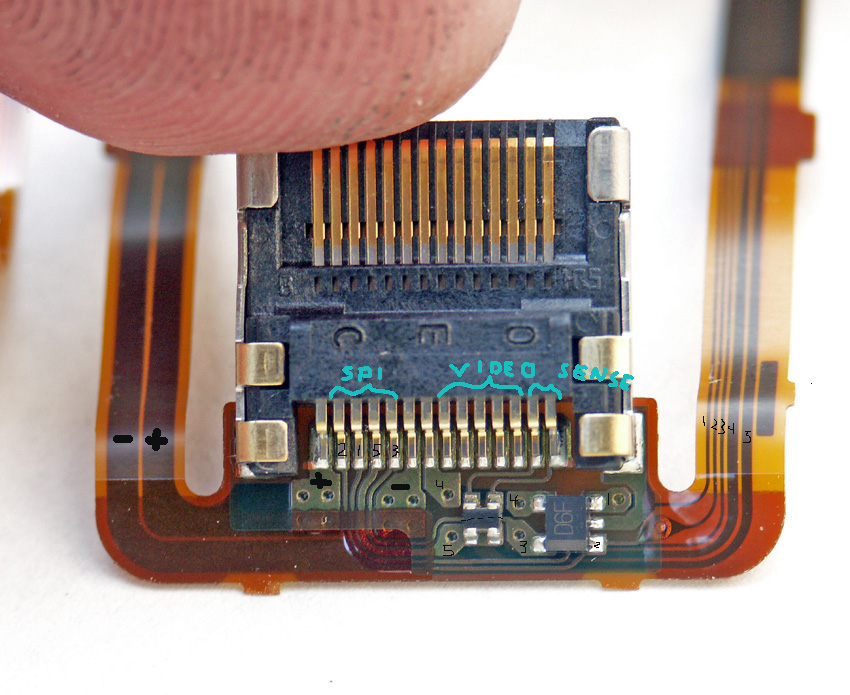

Here's a possible pinout based mostly on what is there and the necessary functions with a flash. Video is possible with the five unassigned pins. Sense just indicates to the camera that something is connected.

http://www.pbase.com/pganzel/image/129373324/large

Pete

Konica-Minolta DiMAGE A2
1/30s f/5.6 at 50.7mm iso100 hide exif
Full EXIF Info
Date/Time29-Aug-2010 03:14:25
MakeMinolta
ModelDiMAGE A2
Flash UsedNo
Focal Length50.7 mm
Exposure Time1/30 sec
Aperturef/5.6
ISO Equivalent100
Exposure Bias
White Balance
Metering Mode
JPEG Quality
Exposure Programmanual (1)
Focus Distance

other sizes: small medium large original auto
comment | share
Shane 15-Dec-2011 01:09
Have you done any further testing to see about adding a sync port to trigger external flashes?
