Nelson Chen Photography | all galleries >> Lenses, Cameras and Calibration >> AF Points > 1D/1Ds Focus Sensors
previous | next

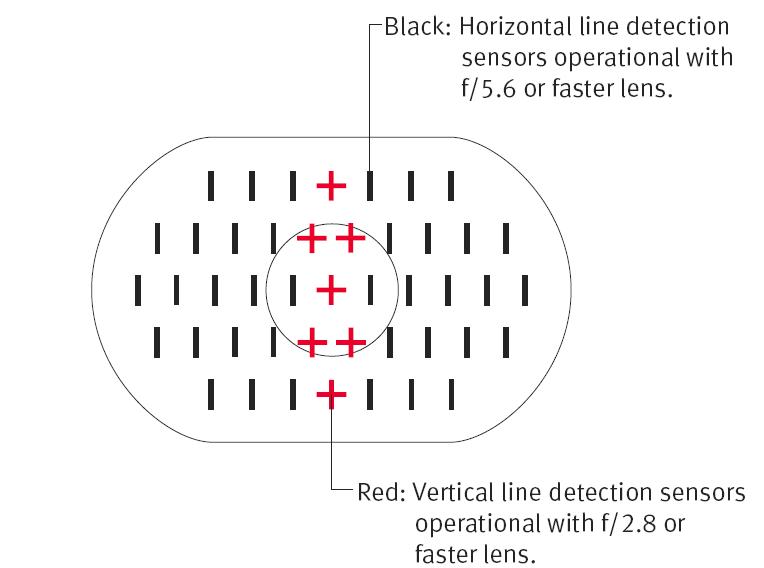

1D/1Ds Focus Sensors


other sizes: small medium original auto
comment | share
Nelson Chen Photography27-Apr-2006 15:45
Tim,
You are absolutely correct. The diagram caption needs to be updated. Thank you for the correction.
Tim Rucci27-Apr-2006 07:33
Your explanation is not exactly correct. In the 1-series cameras, the cross point sensors are sensitive ot both horizontal and vertical lines. The center point has cross point sensitivity up to f4, and the other six cross point sensors need f2.8 or larger apertures. All 45 points give single line sensitivity up to f5.6, but the center point gives single line sensitivity up to f8.
