Another Illustration

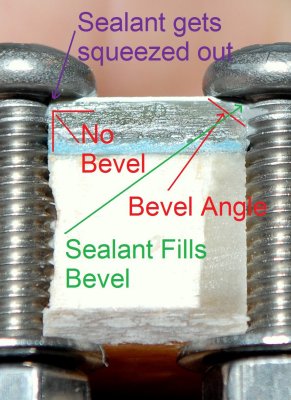

Here you can see how the countersunk hole on the right has forced & compressed the butyl against the bolt and into the threads creating a great seal. The bolt on the left was not countersunk and has very little sealing surface area around the bolts shank or threads.
