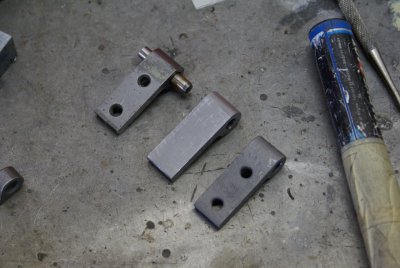

...This hinge issue we had turned out to be a huge PITA and a very expensive repair! The eight used hinges I found, none were any good. The ten 'after market' pieces I purchased, they didn't look right and poorly made. The solution, we had to fabricate them. I'll elaborate more later, go-to-go...
I have a broken hinge and would like to talk to you about what you did and/or get a spare hinge (one of the several ones you didn't want to use.
Mike
707-477-7922
