Orion AG12 Construction photos
These are photos of my OTA being constructed at Orion Optics in the UK
OTA mounting rings

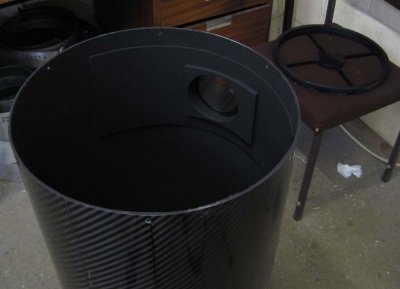

Carbon fibre tube

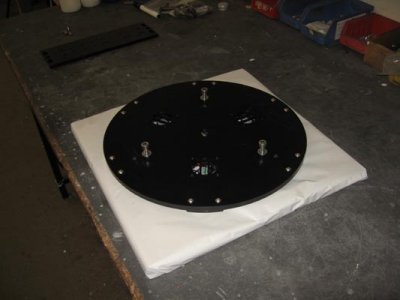

OTA Back plate
Mirror cooling fans

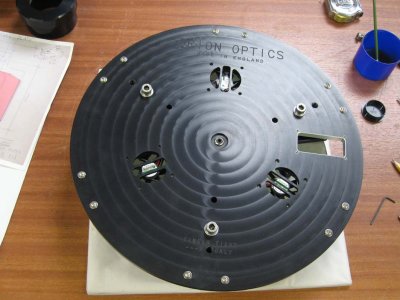

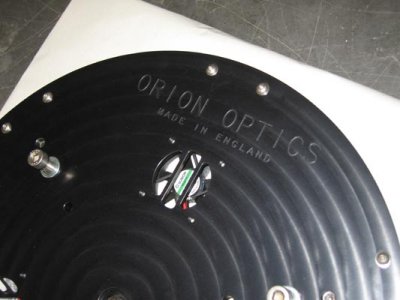

Inside the OTA back plate

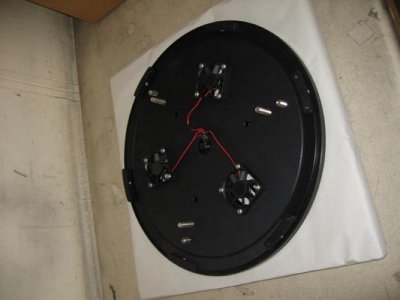

Back plate with cable exit point cut-out
Back plate showing cables exiting OTA

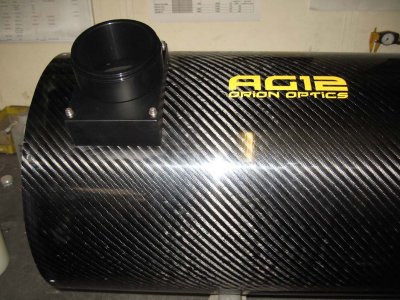

Focuser base with adapter for FLI Atlas Focuser

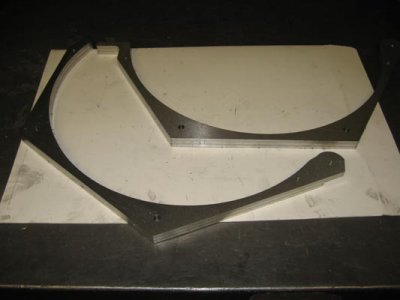

Internal stiffening to prevent tube flexure
OTA with one piece secondary spider assembly

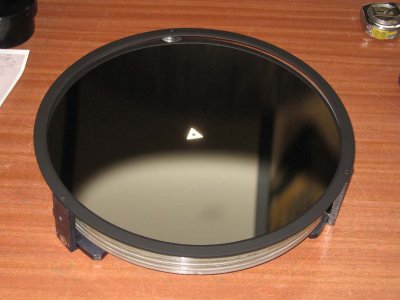

300mm Ultra Grade mirror mounted with beveled edge mask

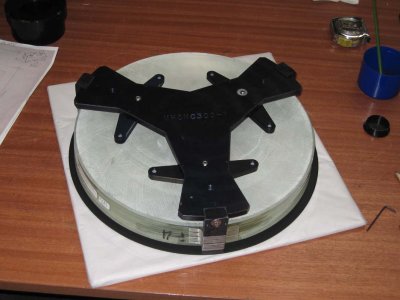

12" mirror 9 point floatation cell

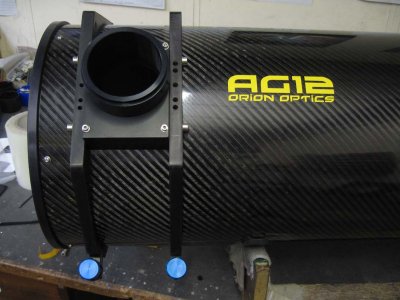

Zero flexure focuser base bracing
FLI Atlas focuser fitted
FLI Atlas focuser with Wynn corrector
