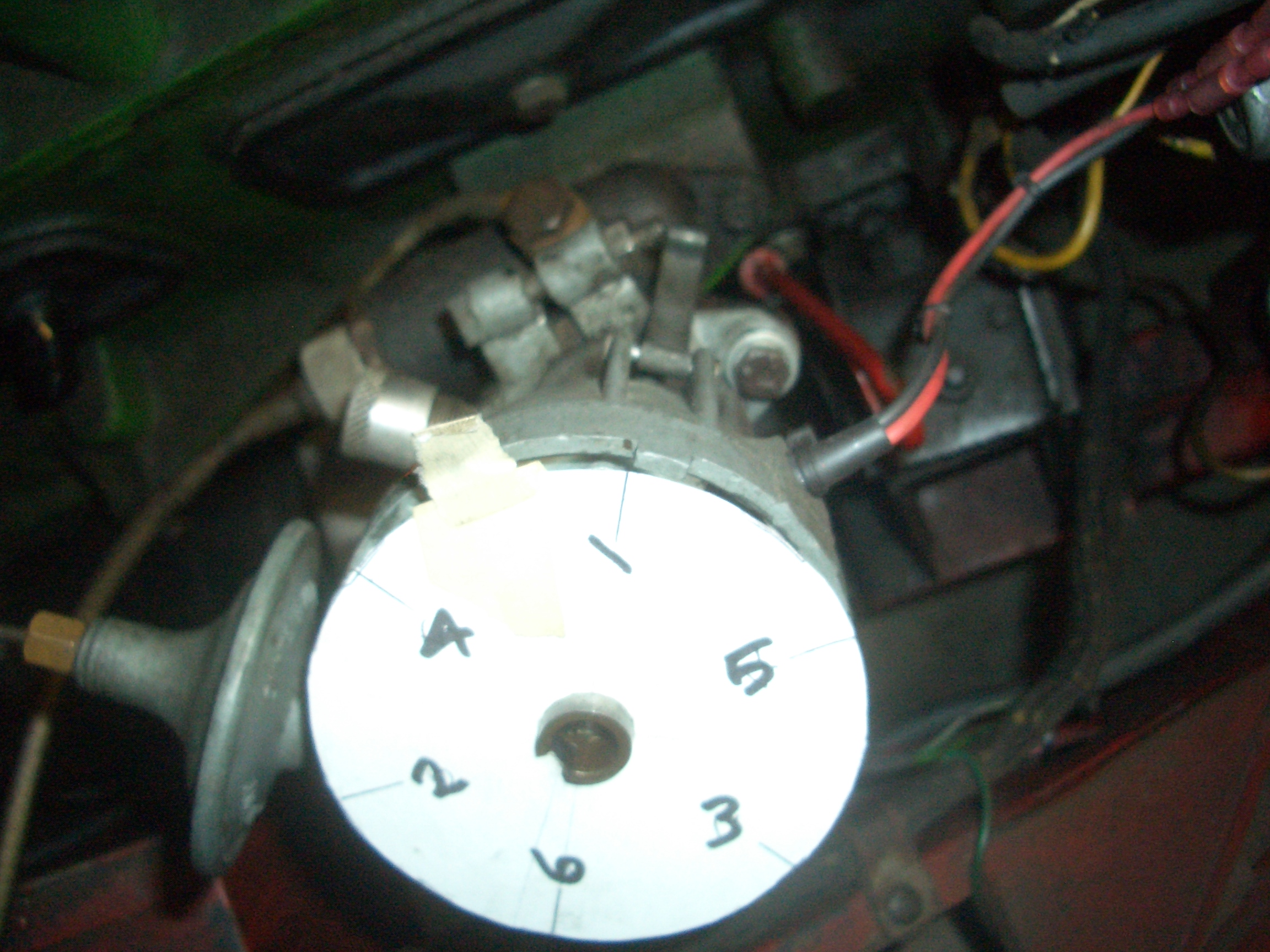

Valve adjusting with Timing Disc

Paper disc shows proper order to adjust valves. Locate TDC on crank pulley, push disc on distributor aligned to a mark you can remember. Adjust valves on #1 cylinder. Use generator pulley nut to rotate crankshaft to alignment of #5 mark. Repeat process for #5 cylinder, etc.
