![faded and cracked window moulding inner trim](https://a4.pbase.com/g1/67/852767/3/127726919.ypP8e46R.jpg) faded and cracked window moulding inner trim |
![inner moulding trim after I painted it black](https://a4.pbase.com/g1/67/852767/3/127726924.csfBkJ6m.jpg) inner moulding trim after I painted it black |
![I pimped my ride](https://a4.pbase.com/g1/67/852767/3/130108002.WYhjuNZ0.jpg) I pimped my ride |
![Peel & Seal (gutter and flashing seal) applied to engine deck](https://a4.pbase.com/g4/67/852767/3/136072730.W7VLsUgu.jpg) Peel & Seal (gutter and flashing seal) applied to engine deck |
![Peel & Seal, painted poptop screws](https://a4.pbase.com/g4/67/852767/3/136072733.nuvAHlUR.jpg) Peel & Seal, painted poptop screws |
![fiberglass front top removed, Peel & Seal applied](https://a4.pbase.com/g4/67/852767/3/136072735.4AN6Tmr7.jpg) fiberglass front top removed, Peel & Seal applied |
![Mirror movement fix](https://a4.pbase.com/g4/67/852767/3/136075289.C3KiIC0U.jpg) Mirror movement fix |
![score base with file](https://a4.pbase.com/g4/67/852767/3/136075290.6CvtltSI.jpg) score base with file |
![score adjusting ball with file](https://a4.pbase.com/g4/67/852767/3/136075291.4oniW1xz.jpg) score adjusting ball with file |

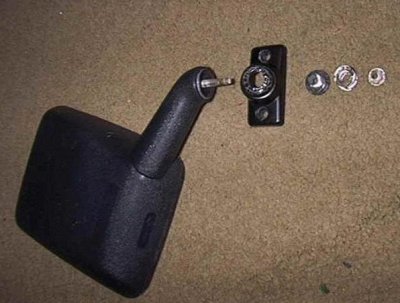

![re-assemble and wind no longer blows mirror around](https://a4.pbase.com/g4/67/852767/3/136075292.dopFxviB.jpg) re-assemble and wind no longer blows mirror around |
![South African lower grill](https://a4.pbase.com/g1/67/852767/3/127726939.hWOhUiMK.jpg) South African lower grill |
![speaker on dash for ham radio, tachometer next to instrument console, CB radio next to shift lever, 2M ham radio on bottom](https://a4.pbase.com/g4/67/852767/3/138871998.UCPRxSmd.jpg) speaker on dash for ham radio, tachometer next to instrument console, CB radio next to shift lever, 2M ham radio on bottom |
![2M ham antenna folds down when not in use](https://a4.pbase.com/g4/67/852767/3/138872054.Mymlunf0.jpg) 2M ham antenna folds down when not in use |
![view from driver's seat.](https://a4.pbase.com/g4/67/852767/3/138872055.gwzk7ARW.jpg) view from driver's seat. |
![side view of van - CB radio antenna mounted up front above glowing turn signal](https://a4.pbase.com/g4/67/852767/3/138872056.GXuDmH8q.jpg) side view of van - CB radio antenna mounted up front above glowing turn signal |

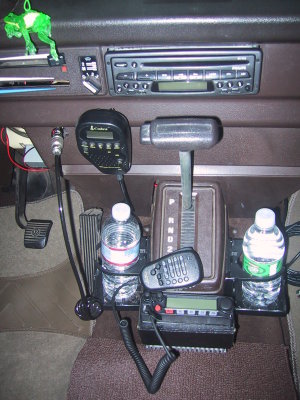

![the 2M radio slides in and out of the bracket I made. Lots of room to move around still.](https://a4.pbase.com/g4/67/852767/3/138872057.v5v5ECe0.jpg) the 2M radio slides in and out of the bracket I made. Lots of room to move around still. |
![rear engine door support step 1](https://a4.pbase.com/g4/67/852767/3/139898508.1kFQNE8i.jpg) rear engine door support step 1 |
![rear engine door support step 2](https://a4.pbase.com/g4/67/852767/3/139898510.8MksX7M9.jpg) rear engine door support step 2 |
![rear engine door support step 3 in open position](https://a4.pbase.com/g4/67/852767/3/139898512.VS3oaoYj.jpg) rear engine door support step 3 in open position |
![Where the rear table should go](https://a4.pbase.com/g4/67/852767/3/139909641.LDgqpXP8.jpg) Where the rear table should go |
![removing table frees up all access](https://a4.pbase.com/g4/67/852767/3/139909644.rHhobeiF.jpg) removing table frees up all access |
![Table leg goes under rear seat](https://a4.pbase.com/g4/67/852767/3/139909647.Nl1aVMAz.jpg) Table leg goes under rear seat |
![carbon monoxide detector, some lights and the AC removed. Need to make a door for the AC](https://a4.pbase.com/g4/67/852767/3/139909649.xrWCvwrr.jpg) carbon monoxide detector, some lights and the AC removed. Need to make a door for the AC |
![extra 12V outlet between storage and silverware drawer](https://a4.pbase.com/g4/67/852767/3/139909651.CRbqsnxC.jpg) extra 12V outlet between storage and silverware drawer |
![removable self-powered subwoofer.](https://a4.pbase.com/g4/67/852767/3/139909654.fpioIBBl.jpg) removable self-powered subwoofer. |
![Horrible exhaust restriction - tube diameter is cut in half where pipes join](https://a4.pbase.com/g4/67/852767/3/140165700.8nOkpHLd.jpg) Horrible exhaust restriction - tube diameter is cut in half where pipes join |
![Look at the blockage](https://a4.pbase.com/g4/67/852767/3/140165701.EjhaKSiZ.jpg) Look at the blockage |
![here's another view - port gets squished to a D shape](https://a4.pbase.com/g4/67/852767/3/140165704.uW0iTVC9.jpg) here's another view - port gets squished to a "D" shape |

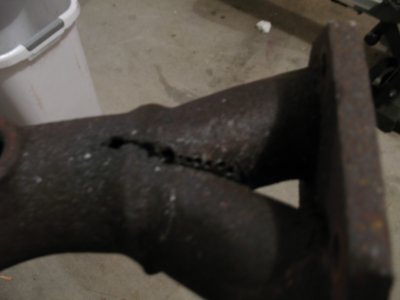

![Drill LOTS of holes](https://a4.pbase.com/g4/67/852767/3/140340041.SmQ1xIgw.jpg) Drill LOTS of holes |
![saw in at end of black V on either side](https://a4.pbase.com/g4/67/852767/3/140340048.fU4oBdbG.jpg) saw in at end of black "V" on either side |
![saw all the way back until the 2 pipes split](https://a4.pbase.com/g4/67/852767/3/140340049.TeLR6uMY.jpg) saw all the way back until the 2 pipes split |
![another view of saw cut near header flange](https://a4.pbase.com/g4/67/852767/3/140340068.adjaRtsM.jpg) another view of saw cut near header flange |
![After sawing through and removing the inner walls](https://a4.pbase.com/g4/67/852767/3/140341103.ynIQwreE.jpg) After sawing through and removing the inner walls |
![Time to clean up the ports (more pictures to follow)](https://a4.pbase.com/g4/67/852767/3/140341107.DaDqW0jT.jpg) Time to clean up the ports (more pictures to follow) |

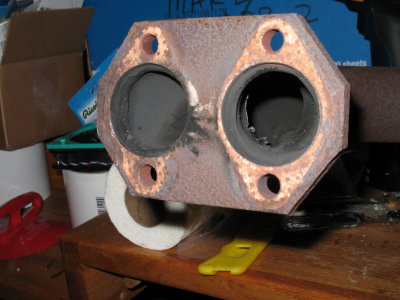

![another view of the now much bigger ports](https://a4.pbase.com/g4/67/852767/3/140341108.EzqazYP9.jpg) another view of the now much bigger ports |
![Nose cone for Shady Boy Awning.](https://a4.pbase.com/g4/67/852767/3/140370386.wAPYhIJR.jpg) Nose cone for Shady Boy Awning. |
![nose cone round 2](https://a4.pbase.com/g4/67/852767/3/140370833.VUSbSrwQ.jpg) nose cone round 2 |
![slot re-welded together](https://a4.pbase.com/g4/67/852767/3/140370836.UrG3kue2.jpg) slot re-welded together |
![a much larger port opening. make SURE you remove all the little welding slag (bits of metal - see little balls on tube wall.](https://a4.pbase.com/g4/67/852767/3/140370839.wPvd59lQ.jpg) a much larger port opening. make SURE you remove all the little welding slag (bits of metal - see little "balls" on tube wall. |
![other side - slot re-welded](https://a4.pbase.com/g4/67/852767/3/140370844.GSPseStl.jpg) other side - slot re-welded |
![GoWesty Rain Fly](https://a4.pbase.com/g4/67/852767/3/140493147.IFUXzupy.jpg) GoWesty Rain Fly |
![GoWesty rain fly 2](https://a4.pbase.com/g4/67/852767/3/140493148.IKXhReyF.jpg) GoWesty rain fly 2 |
![GoWesty rain fly 3](https://a4.pbase.com/g4/67/852767/3/140493149.oKHgTSQe.jpg) GoWesty rain fly 3 |
![DAM! (Air Dam)](https://a4.pbase.com/g4/67/852767/3/141588563.sXXSQhJC.jpg) DAM! (Air Dam) |
![Chin?](https://a4.pbase.com/g4/67/852767/3/141588564.Z2Jywt5F.jpg) Chin? |
![reminder](https://a4.pbase.com/g4/67/852767/3/143061026.fOk9iiip.jpg) reminder |
![Captain's chairs](https://a4.pbase.com/g4/67/852767/3/143061044.ZdjDYGyG.jpg) Captain's chairs |
![Captain's chairs round 2](https://a4.pbase.com/g4/67/852767/3/143061049.aIklLqxL.jpg) Captain's chairs round 2 |
![Fan over sink to get rid of moisture/smells while cooking](https://a4.pbase.com/g4/67/852767/3/143985245.hqdEjwEf.jpg) Fan over sink to get rid of moisture/smells while cooking |
![Fan over fridge coils & white baffle](https://a4.pbase.com/g4/67/852767/3/143985315.g5g30jKw.jpg) Fan over fridge coils & white baffle |
![Switch for fridge fan.](https://a4.pbase.com/g4/67/852767/3/143985327.saVzVL7s.jpg) Switch for fridge fan. |
![This was the CLUNK coming from the rear end - no rubber left inside shock.](https://a4.pbase.com/g4/67/852767/3/145823797.VLlrdE96.jpg) This was the CLUNK coming from the rear end - no rubber left inside shock. |

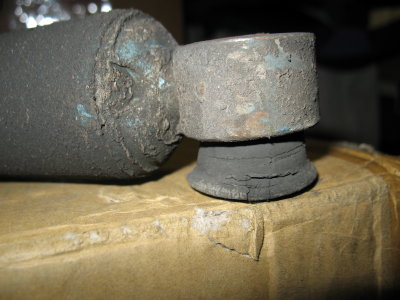

![rubber escaped](https://a4.pbase.com/g4/67/852767/3/145823799.bGlWRjMv.jpg) rubber escaped |
![pretty sad shock end, shocks had virtually NO resistance either way.](https://a4.pbase.com/g4/67/852767/3/145823801.sopyZj7L.jpg) pretty sad shock end, shocks had virtually NO resistance either way. |
:: Aero Roof Mod ::
|
:: Microwave installation in Westy vanagon ::
|
![I put Peel & Seal inside and covered it in headliner. The rest of the dash will be covered soon.](https://a4.pbase.com/g9/67/852767/3/151378781.gSes6QfZ.jpg) I put Peel & Seal inside and covered it in headliner. The rest of the dash will be covered soon. |
![First set of strips of closed cell foam glued to rear hatch. Cutting the foam in to strips made it easier to glue on.](https://a4.pbase.com/g9/67/852767/3/151378838.SX2dkO0X.jpg) First set of strips of closed cell foam glued to rear hatch. Cutting the foam in to strips made it easier to glue on. |
![Old style slider door quiet mods](https://a4.pbase.com/g9/67/852767/3/151583637.O4X8Y5m5.jpg) Old style slider door quiet mods |
![old style slider door plastic roller from ACE hardware installed](https://a4.pbase.com/g9/67/852767/3/151583639.XkSvpnQg.jpg) old style slider door plastic roller from ACE hardware installed |
![Achtung! Schnorkel! Aluminum dryer venting allowing cold air to the air filter housing instead of hot under car air.](https://a4.pbase.com/g9/67/852767/3/151746282.aAlzaMX9.jpg) Achtung! Schnorkel! Aluminum dryer venting allowing cold air to the air filter housing instead of hot under car air. |
:: Propex install in Rocky Mountain Westy Storage Box ::
|
![Third battery dedicated to inverter and outlet next to door](https://a4.pbase.com/g9/67/852767/3/151781204.fk5iPdiR.jpg) Third battery dedicated to inverter and outlet next to door |
![Here's the 1500W continuous 3000W peak inverter - it powers a 700 watt microwave.](https://a4.pbase.com/g9/67/852767/3/151781205.dKv6UMOd.jpg) Here's the 1500W continuous 3000W peak inverter - it powers a 700 watt microwave. |
![Another shot of the inverter, I will build a protective cover for the on-off switch](https://a4.pbase.com/g9/67/852767/3/151781207.irX2SHLA.jpg) Another shot of the inverter, I will build a protective cover for the on-off switch |
:: Solar Panels for the Vanagon ::
|
