Pete Ganzel | all galleries >> Tinkering >> Disassembly of Minolta Maxxum 28-135mm f/4 Zoom Lens > Front Element Group 3440.jpg
previous | next
18-APR-2005

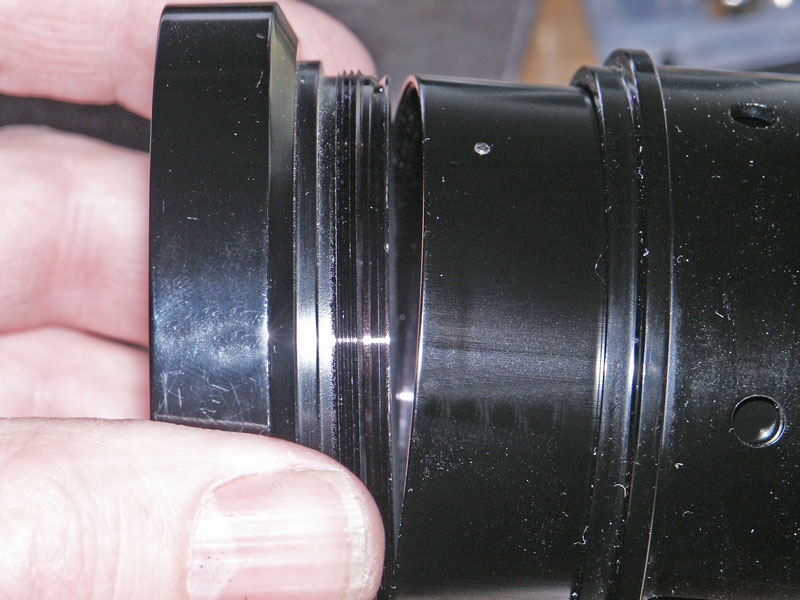

Front Element Group 3440.jpg

Unscrew the Front element group.
After unscrewing the front group, turn in the set screw
flush with the barrel to prevent damage to the zoom ring tube
during removal.

Minolta DiMAGE 7
1/180s f/8.0 at 50.1mm iso100 with Flash hide exif
Full EXIF Info
Date/Time18-Apr-2005 19:38:13
MakeMinolta
ModelDiMAGE 7
Flash UsedYes
Focal Length50.1 mm
Exposure Time1/180 sec
Aperturef/8
ISO Equivalent100
Exposure Bias
White Balancedaylight (1)
Metering Modematrix (5)
JPEG Quality (6)
Exposure Programmanual (1)
Focus Distance

other sizes: small medium original auto
comment | share
Joe Yang 14-Aug-2020 14:39
Hello, I bought this Lens from a friend, but got a problem, which way to lock the Front Element Group? Clockwise or counterclockwise?
When I try to install a protector filter I found my Lens Front Element Group was loose because it can rotate a little, and My friend doesn't know it can be rotate neither.
I worry about maybe the Lens broken or it will effect on photo, try to lock it but I don't know which way is correct.
Sorry about my poor english.
Michiel Louwe 18-May-2012 09:39
Why my comment 2x ?? Anyhow, I found out. (No need to remove the element group from the rest.) Using a Ø 70 mm drainage pipe and a Ø 70 mm rubber disk remove the 'name' ring from the front. The first glass is then released. The second glass is (to be *) held in place by a ring with 4 notches to turn it. * Unfortunatly in my case this ring was loose allready, causing the glasses to touch each other (dead in the middle), so: no fungus but damage to both glasses.
Michiel Louwe 18-May-2012 09:16
I have the same question: how to disassemble the front end to (try to) remove fungus from between the glasses? Thanks! Regards, Michiel.
Michiel Louwe 16-May-2012 14:37
I have the same question: how to disassemble the front end to (try to) remove fungus from between the glasses? Thanks! Regards, Michiel.
Serban 14-Aug-2008 01:52
Peter,
it it possible to further take the front element group apart? My lens has developed some fungus in the rear of the first glass element...
Thank you and congratulations on your excellent work!
Serban
