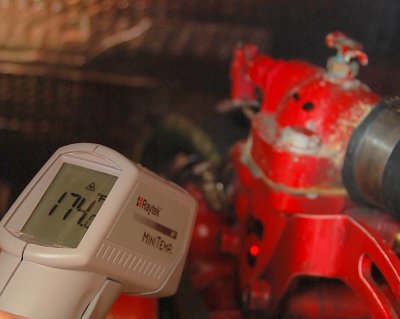

This should be self explanatory as I'm measuring both sides of the thermostat. Comparing these two numbers will give you an idea of how the t-stat is operating and at what temps it's opening and closing.


With all these measurements it's a good idea to measure them over about a 3-5 minute period and then record a low and high reading for each location so you have a baseline "range".
