Lift gate hinge repair on my '79 International Scout II

Here are a few pictures of the hinges I modified to compensate for the cracks in the hinge mounting areas on the liftgate of my Scout. It is not uncommon for these hinges to tear out of the gate as time and use take their toll.
My solution was to add extensions to the hinges and rivet them into the sound sheet metal on each side of the backing plates. I bedded each hinge in auto body seam sealer to keep water from entering the inside through the cracks.
left side mounting area
left side mounting area

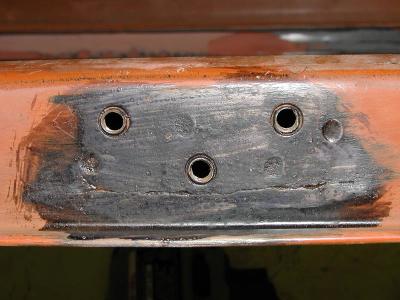

right side mounting area
right side mounting area

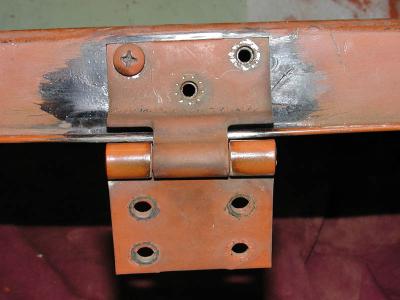

original hinge
original hinge

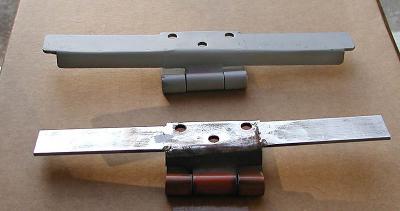

left and right in process
left and right in process
right side hinge from the front
right side hinge from the front

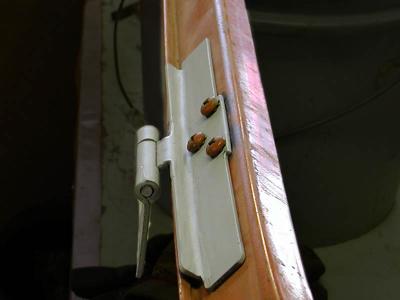

right side end view
right side end view
right side
right side

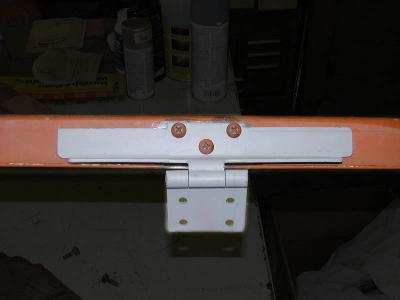

right side top
right side top

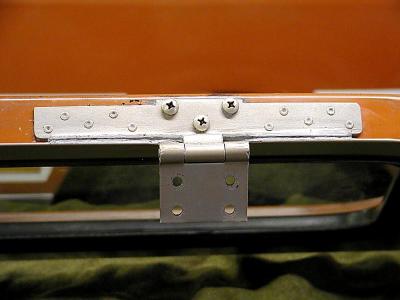

right side installed
right side installed
left side installed
left side installed
