2" x 72" Belt Sander / Grinder Project

Here are a couple short videos of the grinder in action.
http://youtu.be/AyJI2VufuXY
and
http://youtu.be/RCiPJJXlo_8
Class 4 Reese hitch is the main support of the tool

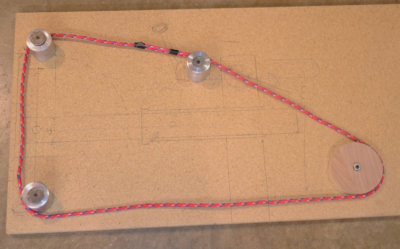

Class 4 Reese hitch is the main support of the tool		 Deciding on a layout
Deciding on a layout		 Hitch cut and tack welded to rolling base
Hitch cut and tack welded to rolling base
I cut the platen base plate from 1/2 aluminum
I cut the platen base plate from 1/2" aluminum		 1/2 aluminum
1/2" aluminum		 Welded up the tracking arm hinge
Welded up the tracking arm hinge

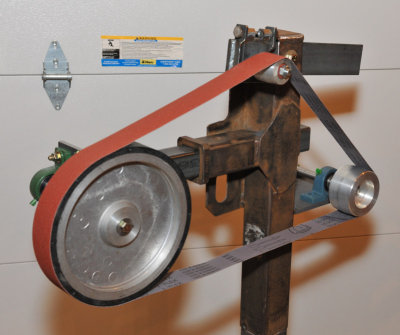

First fit with the 10 Grizzly contact wheel and a belt
First fit with the 10" Grizzly contact wheel and a belt		 Contact Wheel
Contact Wheel		 Fit for the Platen setup
Fit for the Platen setup
Drive shaft detail
Drive shaft detail		 Painted base
Painted base		 Completed tool
Completed tool
Contact wheel with adjustable tool support
Contact wheel with adjustable tool support		 Contact Wheel tool support set to hollow grind a chisel

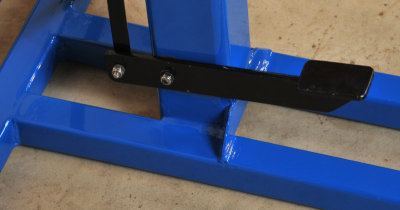

Contact Wheel tool support set to hollow grind a chisel		 Foot pedal to raise motor 1 (to change belt speeds)
Foot pedal to raise motor 1" (to change belt speeds)

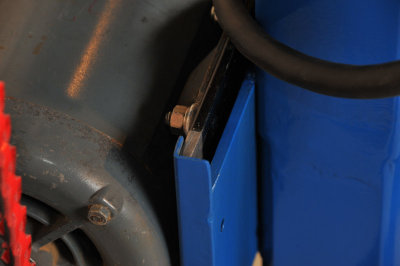

Slide for motor mount

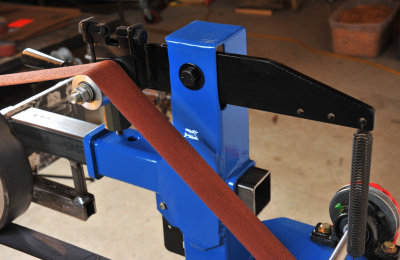

Slide for motor mount		 Tracking Arm
Tracking Arm		 Tracking Arm
Tracking Arm

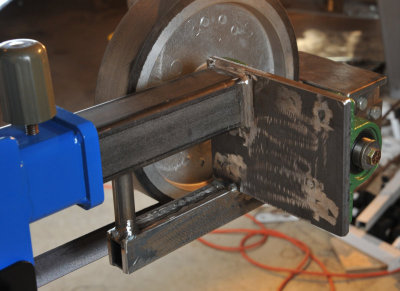

Adjustable Tool Support
Adjustable Tool Support		 Adjustment linkage for tool rest
Adjustment linkage for tool rest		 Rear of contact wheel
Rear of contact wheel

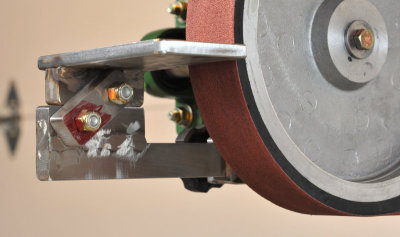

Platen sander (adjust to 50 degree angle)
Platen sander (adjust to 50 degree angle)		 Platen and switch detail
Platen and switch detail		 Rear of adjustable platen
Rear of adjustable platen
Angle on platen setup
Angle on platen setup
