Elizabeth Allen's Stunning EMD SD45X Project

A chronological photo essay of one of Elizabeth Allen's most stunning projects: a mostly-scratchbuilt HO Scale EMD SD45X. Gray parts, brass walkway tread and front steps are from Cannon & Co. All other parts are formed from Evergreen Styrene. Oh, and a gyralite and P3 airhorn assembly from Detail Associates, a rooftop bell from Details West, and stanchions from PIA & Smokey Valley.. That's IT!

Truly a stunning model! Model is of SP 9500, circa 1979-1980.

See the last page of this album for the painted & weathered photos.

Album last updated 12/28/2006.

All photos copyright 2004, 2006 - Harry K. Wong & Elizabeth Allen

pages 1 2 3 4 5 6 7 8 9 10 ALL

Skip to Page 8 for the fully constructed (but not yet painted) model!	The King of SDs! Model by Elizabeth Allen.	70 feet 8 inches of utter styrene madness!	Long hood overall view
rear view - engineers side - highlighting roof details.	check out the rivets on the roof!	totally kitbashed SD45X inertial dome & plate from four(!) Cannon inertial kits!	fan baseplates from .005 styrene. Note the embossed rivets!!

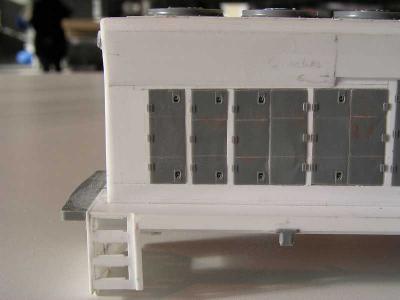

60" tall kitbashed Cannon Doors under radiator section	Dynamic brake grids from cut-down Cannon SD60 dynamic grids.	88" nose with brakestand on engineers side per prototype SD45Xs.	check out all that 45X-only weirdness!

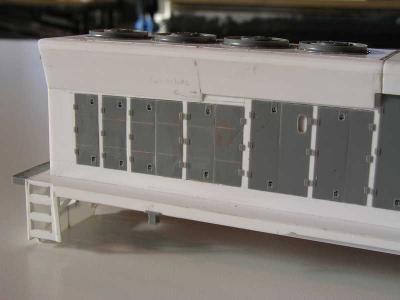

dynamic section still underway! Note the scratchbuilt base for the turbo exhaust stack.	Here is another view of those Cannon hood doors shortened to 60" under the radiator section.	totally scratchbuilt underframe!	Hey.. is that daylight I see underneath the jacking pad/bolster assembly?
underbody view	2003_P1030107.JPG	2003_P1030109.JPG	2003_P1030110.JPG
2003_P1030111.JPG	2003_P1030112.JPG	2003_P1030113.JPG	2003_P1030114.JPG
2003_P1030116.JPG	2003_P1030117.JPG	Overall View - Basic Construction..	2003_P1030119.JPG
2003_P1030120.JPG	Nose light assembly using Evergreen styrene, Cannon Headlight and Detail Associates Gyralite.	2003_P1030122.JPG	2003_P1030124.JPG
additional .005 sheets of plastic soon to be added to either side of the dynamic brake fan plate	2003_P1030126.JPG	top view of 45X stack and dynamic section.	top view of inertial dome & cab.
2003_P1030129.JPG	Just awaiting some Farr Radiator Grilles next!	2003_P1030131.JPG	dynamic brake grilles made from cut-down Cannon SD60 dynamic brake grille assemblies.

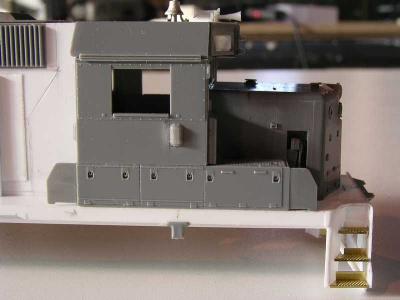

2003_P1030133.JPG	88" nose with ratchet on engineers side just like the real deal!	Updated rear class light positioning! Model & Photo by Elizabeth Allen.	top view of rear end.. looking awesome! Model & Photo by Elizabeth Allen.
3/4 view of pilot and nose/cab assemblies. Model & Photo by Elizabeth Allen.	Earlier view before addition of dynamic brake grilles. Model & Photo by Elizabeth Allen.	Dynamic Brake section now with riveted sheets added. Jan 5, 2004	Dynamic Brake section now with rivet sheet added. 1/05/2004

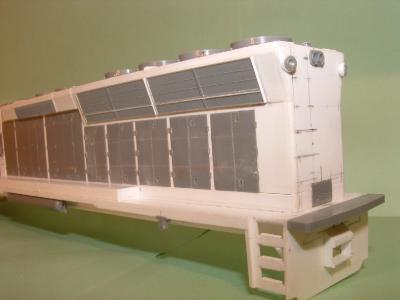

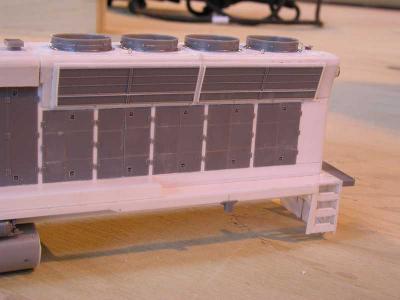

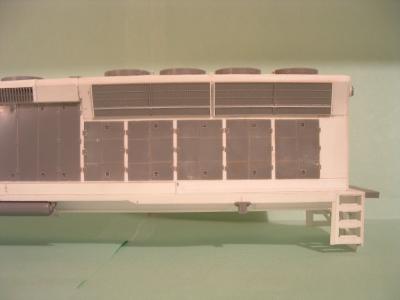

Now with grilles added on. - test fit with doublesided sticky tape!	Side view of radiator grilles on fireman's side.	2003_P1240006.JPG	radiator section closeup

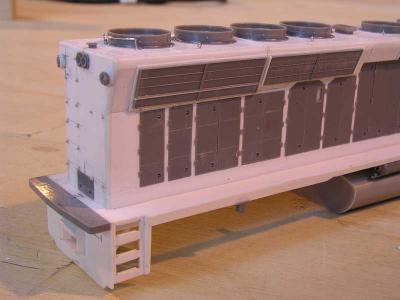

rear pilot with Cannon Anticlimber	2003_P1240012.JPG	Dynamic brake hatch now with sheet metal (.005 styrene) work complete.	Look at the detail on that batten strip centered between the four radiator fans!
Overall of radiator section - largely complete	side elevation of multi-spliced SD39 Farr Grilles	check out the funky doors unique to the SD45X!	2003_P1240026.JPG

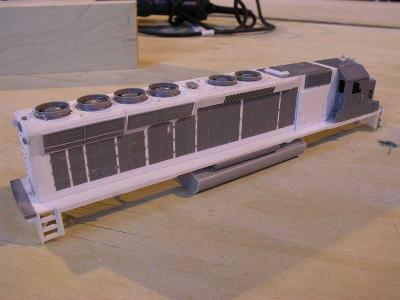

end of long hood now complete with access panels to either side of sand filler.	Overall rear 3/4 view	2003_P1240035.JPG	Radiator grilles built from splicing from Cannon SD39 grilles

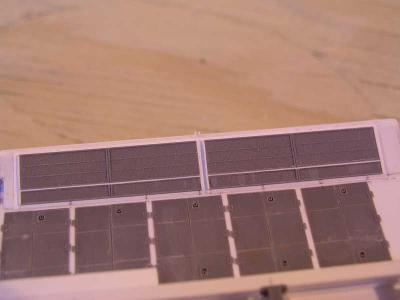

2003_P1240039.JPG	another view of spliced SD39 Farr Grilles	check out the amazing latches on the access doors!	Totally certifiably insane radiator grille tiedown latches!

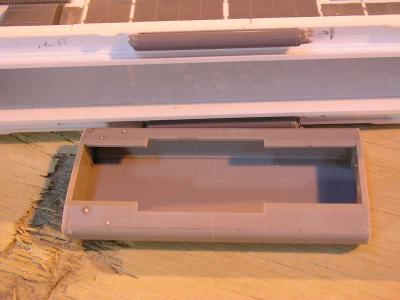

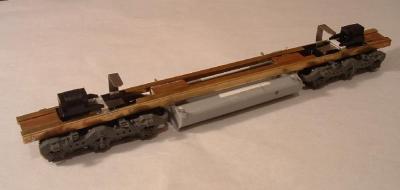

More of those insane tiedown latches, fashioned out of styrene!	That's an Athearn SD50 fuel tank, all stripped bare	Scratchbuilt frame for SD45X. Final version will be a milled-down Athearn SD50 chassis.	now with trucks - Mar 22nd.

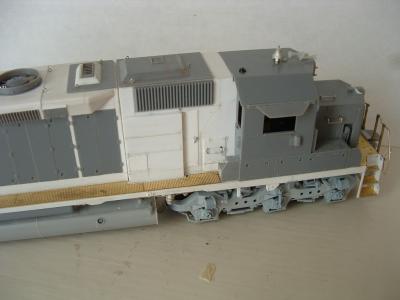

with full frame attached.	now with sliced 'n diced Cannon treadplate	just a few more details and she'll be done!	nice underframe detail (to name just one spot!)

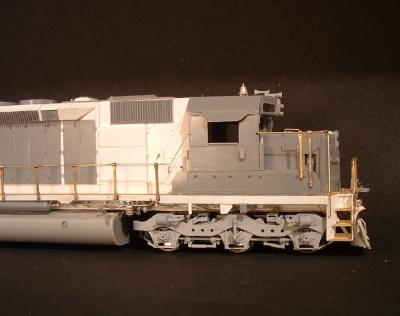

Lookit all the detail!	engineers-side detail. DW Sanding brackets (SB-330) now installed.	overall.jpg	overall_rear.jpg
How Now, with Front Plow?	Just a few more stanchions to go..	The classic (and unique) profile of the SD45X.	Now with rear plow.
Now with stanchions and fan grilles installed.. stuuuu-pendous! =)	D27.JPG	D31.JPG	D36.JPG
She just needs some air lines for the brake cylinders, but that's about it,.almost!	Cabside.jpg	DF56.JPG	DF54.JPG

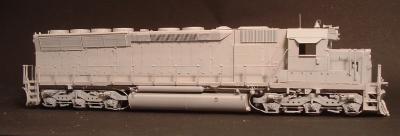

SD45X_1.JPG	SD45X_2.JPG	underside1.jpg	F0083.JPG
rear_firemans_primer.jpg	underside1.jpg	nearing completion.. needs window glass and more weathering..	nearing completion.. needs window glass and more weathering..

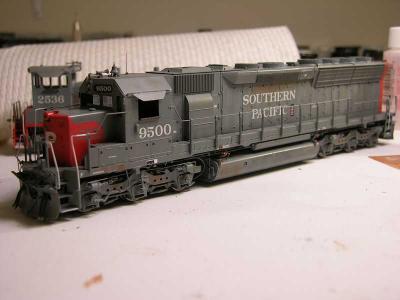

nearing completion.. needs window glass and more weathering..	2004_DSCN4422.JPG	Now with window panes installed., and final touches of weathering..	Overall weathering - engineer's side..

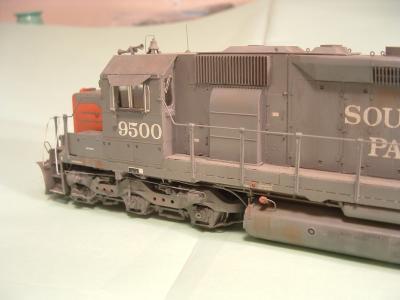

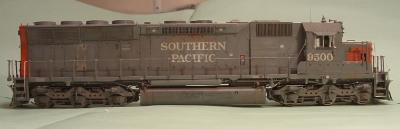

3.jpg	4.jpg	Look carefully for all the subtle nuances of color in the weathering.	6.jpg
7.jpg	8.jpg	9.jpg	10.jpg
11.jpg	12.jpg	13.jpg	14.jpg
16.jpg	17.jpg
