Stage 1 of Ody Audio Upgrade

Head unit, amp, speakers, wiring... Click on this link to Odyclub.com to read commentary about the install/development process.
previous pagepages 1 2 3 4 5 6 ALL next page
with cover on
with cover on		 head unit - still need to fill top gap with ABS bezel shim
head unit - still need to fill top gap with ABS bezel shim		 Focal 165K mid bass in door - temporary mount
Focal 165K mid bass in door - temporary mount		 rear view of driver's seat, crossovers easily accessed for adjusting
rear view of driver's seat, crossovers easily accessed for adjusting
front view again

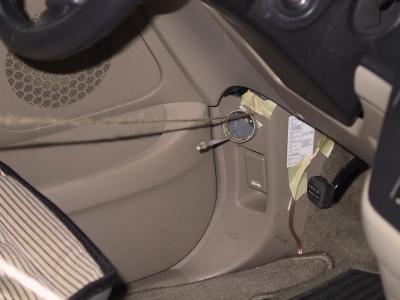

front view again		 tweeter angle tuning using string, chopsticks, tape
tweeter angle tuning using string, chopsticks, tape		 note I've setup for crossfire config
note I've setup for "crossfire" config		 angle is a little off, what the heck....
angle is a little off, what the heck....
passenger side tweeter pod, view from driver's seat

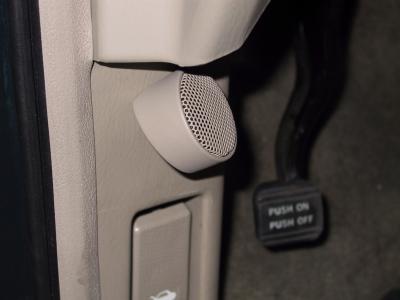

passenger side tweeter pod, view from driver's seat		 close up of driver's side pod, sanded, primed and painted to match interior. Color match is good enough, though not perfect
close up of driver's side pod, sanded, primed and painted to match interior. Color match is good enough, though not perfect		 passenger tweeter pod, had to modify the pod to adjust angle significantly
passenger tweeter pod, had to modify the pod to adjust angle significantly		 close up of driver's tweeter from passenger seat
close up of driver's tweeter from passenger seat
