New Subwoofer Amp Installed

After the console was built/installed, I decided to swap out the bass amp. My old a/d/s P2110 doesn't run extremely well at 2 ohm bridged, and with the subs in series, it limits power too much on the amp, reducing headroom. So I got a Phoenix Gold T500.2, which is just a little more powerful, but most importantly stable at 2 ohms bridged. In the process, I needed upgraded cabling for the additional current draw (used 4 gauge), and also added a 1 farad monitor cap to even out the power supply. It's up to par now.

Click on this link to Odyclub.com to read about how this install unfolded.
previous pagepages 1 2 ALL next page
Late at night, the only way to work in an Ody. I tie wrapped a 4 foot shop light across the front handles.

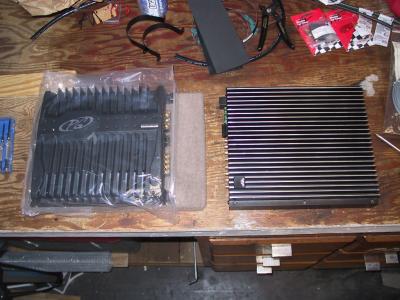

Late at night, the only way to work in an Ody. I tie wrapped a 4 foot shop light across the front handles.		 PG on left, a/d/s on right. Made a new mounting riser for it.

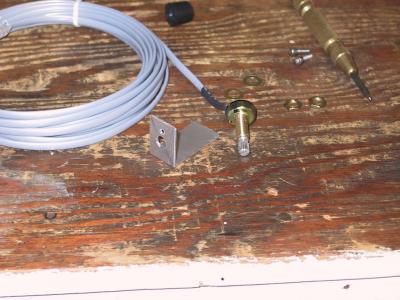

PG on left, a/d/s on right. Made a new mounting riser for it.		 Cut an aluminum angle bracket to hold the LPL44 sub level control knob.

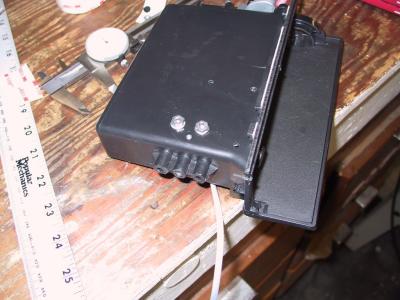

Cut an aluminum angle bracket to hold the LPL44 sub level control knob.		 LPL mounted to my covered pocket with 2 machine screws.

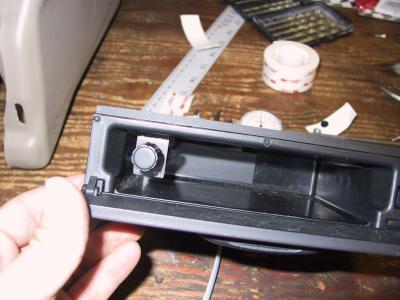

LPL mounted to my covered pocket with 2 machine screws.
Nice...

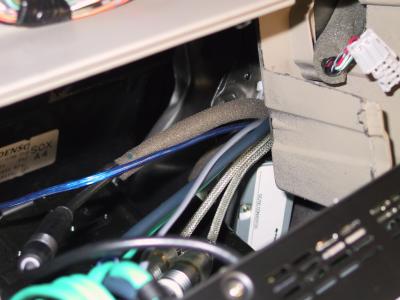

Nice...		 Picture inside the dash, note how I wire tie everything to the side so as not to interfere with the coin/cupholder.
Picture inside the dash, note how I wire tie everything to the side so as not to interfere with the coin/cupholder.		 Bass amp is 2nd fuse, 4 gauge wire

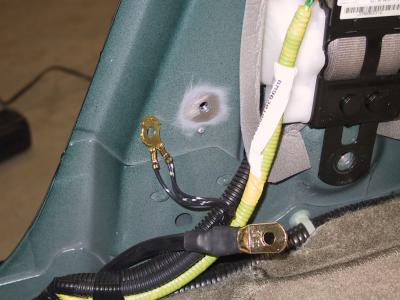

Bass amp is 2nd fuse, 4 gauge wire		 Amp ground @ the factory point next to the seat belt anchor. I did some additional surface prep..
Amp ground @ the factory point next to the seat belt anchor. I did some additional surface prep..

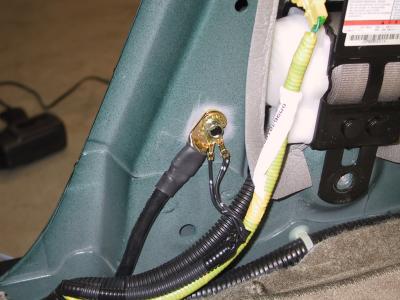

Ground connected

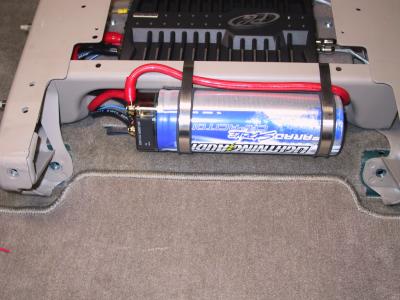

Ground connected		 1 farad Lighning Audio Monitor Cap. Used worm drive hose/pipe clamps, rubber and foam strips to mount it to the seat frame.

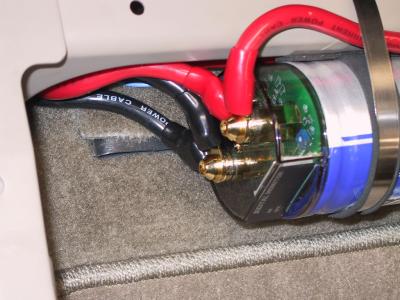

1 farad Lighning Audio Monitor Cap. Used worm drive hose/pipe clamps, rubber and foam strips to mount it to the seat frame.		 Connections: to amp, and to ground/power, all 4 gauge

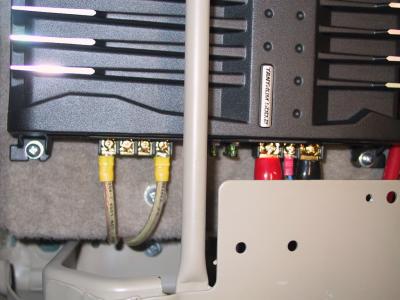

Connections: to amp, and to ground/power, all 4 gauge		 Amp connections
Amp connections
