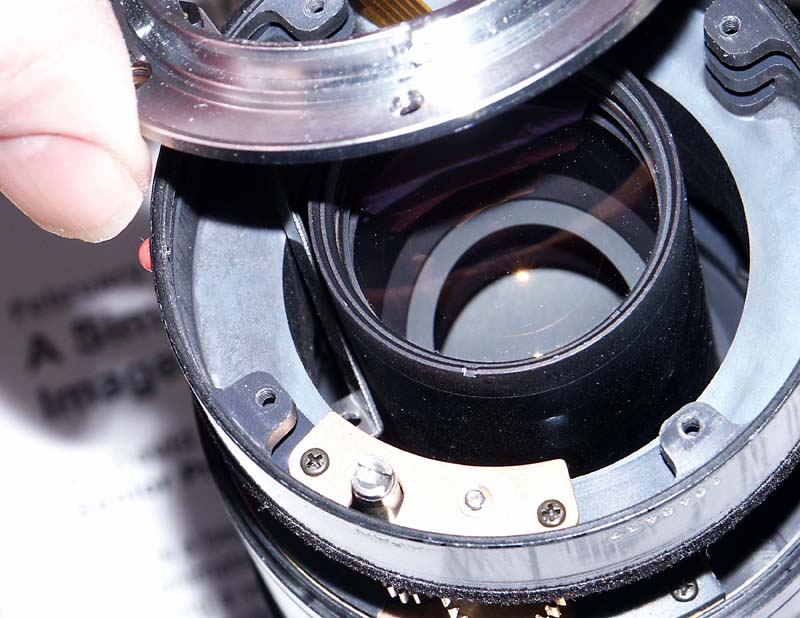

Aperture Actuator Rod3009.jpg

Remove the lens mount. Watch for any shims between the lens mount and the lens casting.
If present mark their position.

The iris actuator rod is slid out as you remove the lens mount.
The forked end must be realigned with the iris pin during reassembly.
