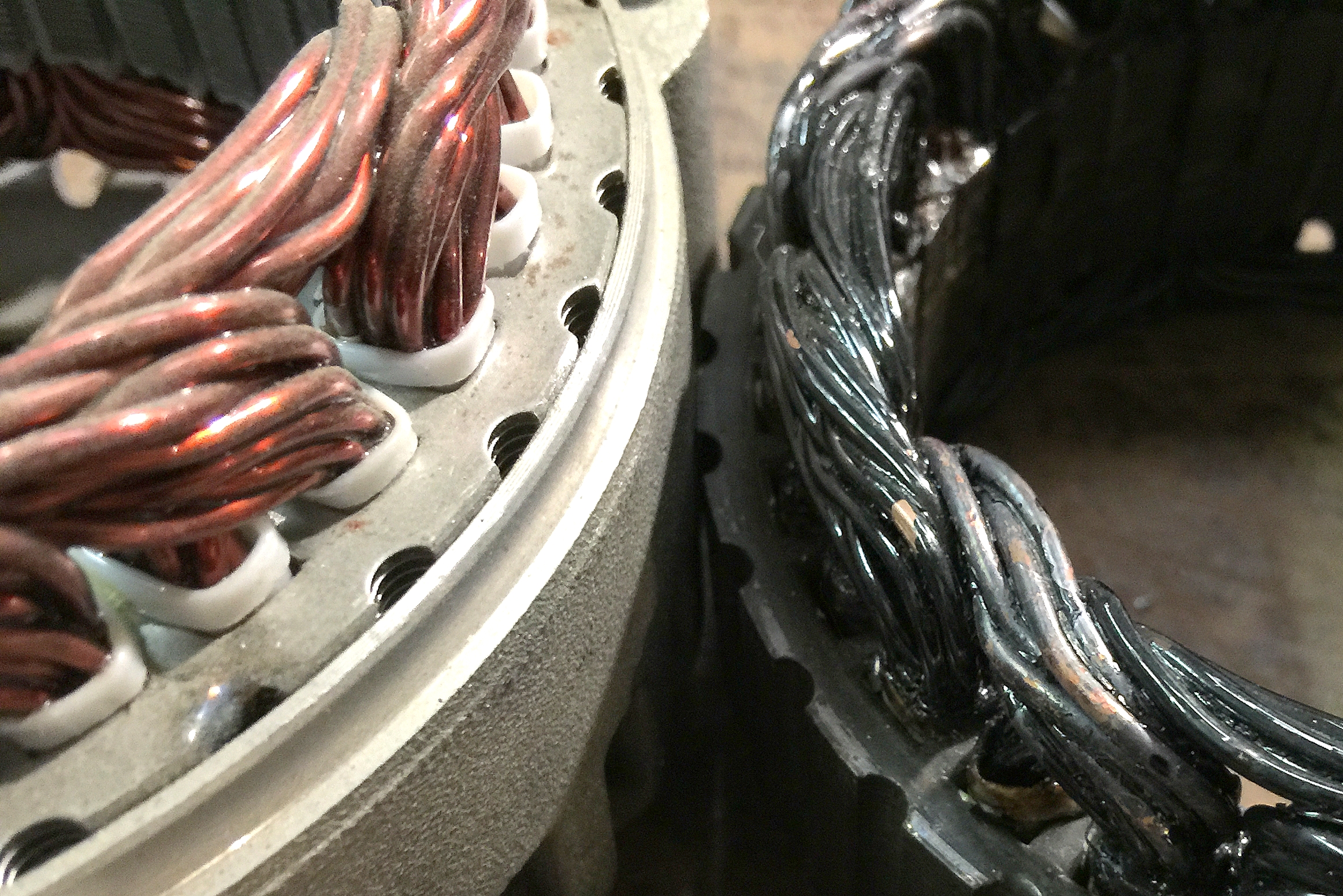

In case the context of the last photo was lost, this is a new stator and a fried stator. This alt was also thermistor protected but the battery bank was simply too large, and regularly over discharged, for the alternator to adequately self protect itself. Again, in this case a properly installed external regulator with alternator temp sensor, would have saved this alternator.
