Crimp Top
21-APR-2013

Crimp Top

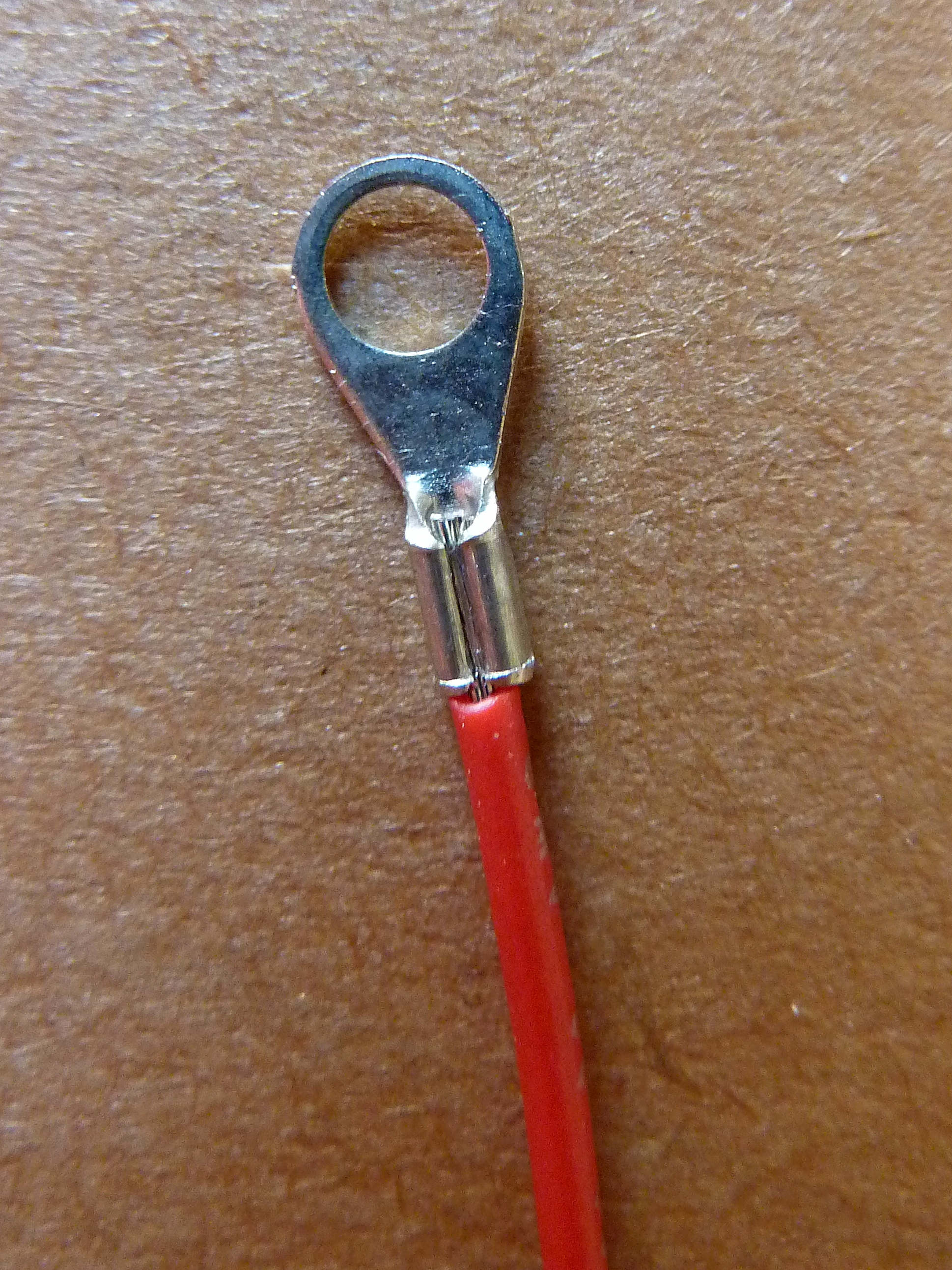

Once the terminal has been crimped it should look like this.


You will notice a bit of wire sticking out the ring end and the "butt cheek" folds are even on both sides. If you don't get the dimple right over the seam the "butt cheeks" will be uneven and the termination will not be as strong. If you wear reading glasses I would suggest wearing them when working with these terminals...
