Speedometer Correction Device
Yellow Box Speedometer Correction Device from
http://www.blackrobotics.com/

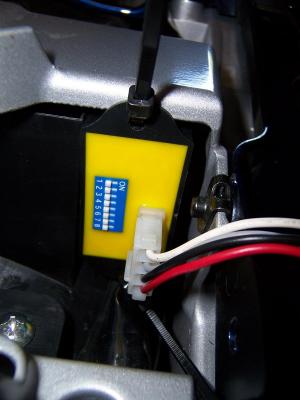

Yellow Box Speedometer calibrator, being zip tied to frame
Yellow box in postion
I mounted it in an out of the way location under the seat
The White wire with the Yellow stripe on 2006 FJRA models is the speedo signal
I spliced into power for the Yellow Box from the two bullet connectors for the license plate light, which are next to the ECU
Once I soldered on the power leads, I put the rubber covers back on
Cutting the speedo wire to the ECU
The white wire from the Yellow box goes to the harness side of the cut wire, and the gray wire goes to the connector side
I set the Yellow box for a 4% calibration factor and this works just right for my bike
