Mouser Part# 531-PC16DC-1K Description: “BLK SQ 6PIN 1K”
Mouser Part# 531-PC16DC-1K Description: “BLK SQ 6PIN 1K”

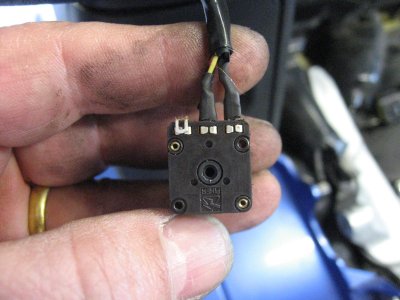

I soldered on telephone cord and covered it with heat shrink
I soldered on telephone cord and covered it with heat shrink

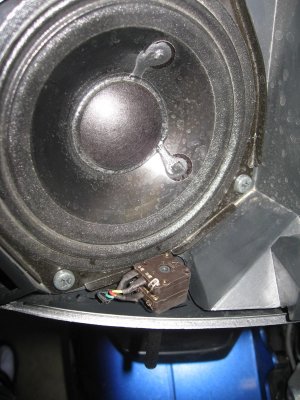

Test for fit and position
Test for fit and position
Cord is run up through the hole for the speaker wire
Cord is run up through the hole for the speaker wire
Drilling the pilot hole
Drilling the pilot hole
Test fit
Test fit
I covered the entire control with electrical tape to keep water out of it
I covered the entire control with electrical tape to keep water out of it
I sliced open the insulation on the passengar headset cord under the seat
I sliced open the insulation on the passengar headset cord under the seat
Extracting the Left and Right audio wires (Red and Yellow)
Extracting the Left and Right audio wires (Red and Yellow)
I cut the wires so I could insert my volume control in line
I cut the wires so I could insert my volume control in line
Wire connections are soldered and heat shrunk
Wire connections are soldered and heat shrunk
All four connections done
All four connections done
Completed splice
Completed splice
Finished product
Finished product
