| fred harmon | profile | all galleries >> concours14 >> Top Block Tip Over Protection (2010/2011) | tree view | thumbnails | slideshow |
 Product is very nicely packaged |
 You can see the various components here |
 Total weight is about 10 lbs |

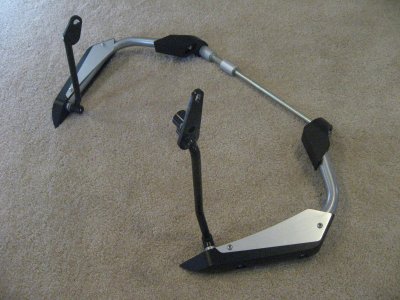

 Here you can see what it looks like assembled and the frame connection bars |
 Removing center engine mount bolt. This gets replaced with the special bolt from Top Block to support the rear of the sliders |
 Drilling 1 inch hole with a hole saw |
 Right side hole complete with forward support bar in place and centered |
 This shows the right side forward support bar |
 Right forward support bar connection to engine mounting bolt |
 Right side connection to forward support |
 26mm mark down on lower fairing panel |
 Marking the point to drill |
 Drilling small pilot hole first to insure everything is lined up |
 Starting larger cut with hole saw in left side |
 Excaliber Drill making big holes in expensive motorcycle parts |
 Left hole complete |
 Forward support for left side |
 Forward support for left side |
 Left side forward support bar mounted |
 Left side |
 Left side |
 Right Side |
 Right side |

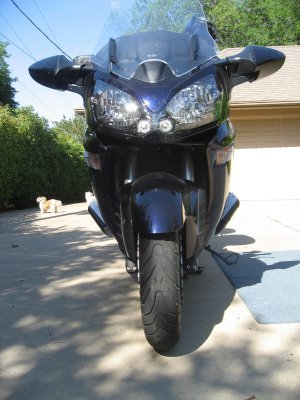

 Front view |
 Front view |
 Bike layed on left side, nothing touches at all other than the Top Block slider |
 Bike on left side |
 Note saddlebag clearance |
 TopBlockSliders 003a.JPG |
 TopBlockSliders 004a.JPG |
 TopBlockSliders 005a.JPG |
 TopBlockSliders 006a.JPG |
 TopBlockSliders 007a.JPG |
 TopBlockSliders 008a.JPG |
 TopBlockSliders 011a.JPG |
 TopBlockSliders 012a.JPG |
 TopBlockSliders 013a.JPG |
 TopBlockSliders 016a.JPG |
 TopBlockSliders 018a.JPG |
 TopBlockSliders 019a.JPG |
 MufflerDamage 002a.JPG |
