NEP CC-3 Throttle Lock
I used a dremel to remove the ridges off the bottom piece
I then flipped the bottom piece over and reinstalled it, so that the tab was at the lowest point

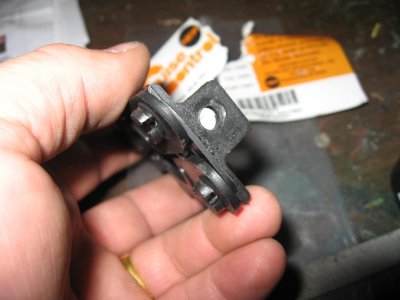

I drilled a 1/4 inch hole in it for the screw on the throttle housing
Make sure to put it on an mark the position of the hole before you drill it, so it lines up
Remove screw on bottom of throttle cables
Pull back grip, install throttle lock
Put the tab between the housing and braket
Tab in place
Reinstall screw
Roll the grip back on and you are done. Check for freedom of movement and adjust as needed
