 OHFJR rack (right), Givi E250 universal mount and cover |
 The OHFJR rack simply bolts right in with no fuss |
 Rack Installed |

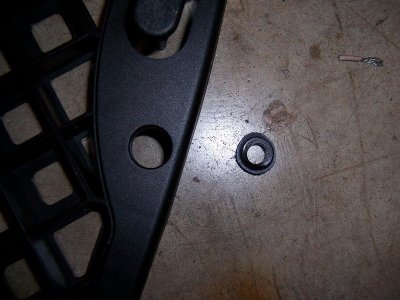

 Removing grommet on Givi E250 universal mount |
 Hole unde grommets line up with holes on OHFJR rack |

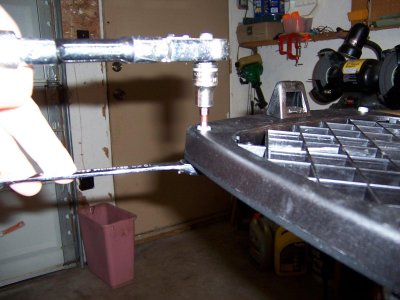

 Tightening bolt |
 Oops! Bolt busted through the E250 mounting plate |
 The bolt pushed right through and broke the plastic with very little force |
 After talking with Givi, they reccomend mounting on the webbing, so I drilled two holes in the rack to for the bolts |

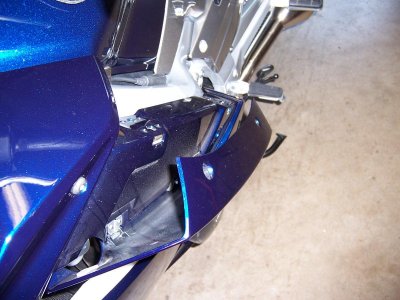

 Front bolts are lined up so that they are under the recessed area on the FJR tail |
 I tapped the holes with a 6mm x 1 tap |
 I removed the OHFJR rack and installed the front bolts to see how much I needed to cut off so they wouldn't hit the FJR tail |

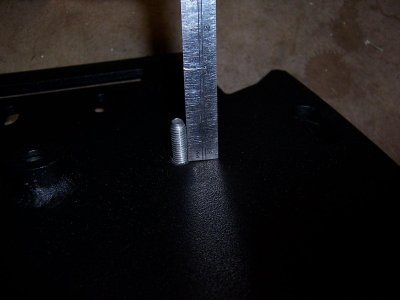

 Front bolt cut off flush so it won't scratch plastic on FJR tail |
 The rear bolts are well clear of the FJR plastic, so I just installed them with the provided locknuts and cut off the excess |
 E250 installed on OHFJR rack |
 Cover plate gets put in place |
 Completed install |
 The painted lid on the V46 really matches well |
 The rack has a nice low profile |
 Givi V46 |
 Without the Givi installed |
 Without the Givi installed |
 Without the Givi installed |

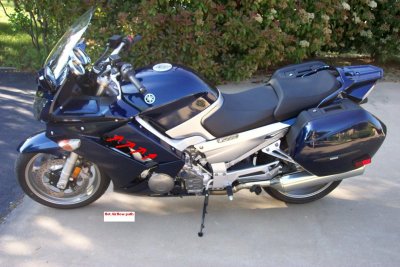

 Givi Box on the road |
