2004 Honda XR 650L

I purchased this bike used with 14,700 miles. 16.200 miles now. Several mods had been done to this bike.
Renthal 7/8" CR-HI bars. Wrap around alum handguards with plastic shields.
IMS Black fuel tank. Replaced with RED Clark 4.7 tank. IMS oversize foot pegs.
MSR extended shift lever. Forks & Shock revalved by Precision Concepts.
Edelbrock carb (removed). Replaced with stock carb with "DJ" mods.
Stock muffler replaced with Super Trapp (12) discs. Smog stuff removed and block off plates installed.
1st an 2nd gears were replaced with 1st and 2nd gears from XR 600r. This allowed better gear spacing.
Rear rack, brush guards, & rear brake cyl Powder Coated RED.
I like red. Side panels painted with Krylon Fusion plastic paint.
XR600r & XR650L have history of rear frames and sub frames cracking and breaking.
Page 2 shows gussets I installed from the down tube to turn signal holes before frame started cracking.
Tires: Rear Dunlop 606 50%, Front Kenda Track Master new. UNI air filter. HD tubes both tires.
Not included: Tools in rear fender bag, tubes in front bag, Dirt bagz, Dirt bagz rack is included.

I have posted personal Mods and additions to this bike. Click on pictures for more info.
previous pagepages 1 2 3 4 ALL next page
Picture When Purchased
Picture When Purchased
How it looks today, 10/15/09
How it looks today, 10/15/09
Loaded for 4 day dirt trip, Az & Utah
Loaded for 4 day dirt trip, Az & Utah

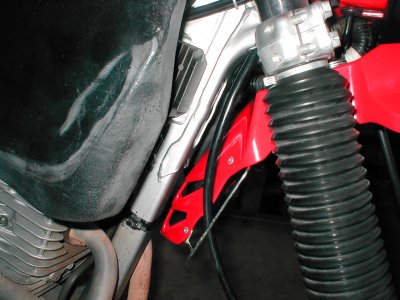

Front Fender-Vented Rear Edge
Front Fender-Vented Rear Edge
Front Fender Acerbis Super Motard front fender 2000CR Red
Front Fender Acerbis Super Motard front fender 2000CR Red

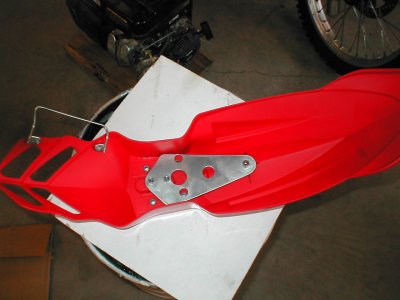

Added Front Fender Brace For added Weight of 2 Tubes-Bottom Side
Added Front Fender Brace For added Weight of 2 Tubes-Bottom Side
Top Side Front Fender
Top Side Front Fender
Oversize Front Fender Bag-Holds 2 Tubes & Inflation Equipment-Kelly Enduro-rod@trailbike rallys.con.au
Oversize Front Fender Bag-Holds 2 Tubes & Inflation Equipment-Kelly Enduro-rod@trailbike rallys.con.au

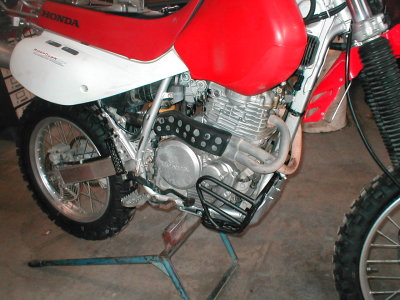

Skid Plate & Engine Guard -Turbo City-Right Side
Skid Plate & Engine Guard -Turbo City-Right Side
Skid Plate & Engine Guard -Turbo City-Left Side
Skid Plate & Engine Guard -Turbo City-Left Side
Inside - Turbo Skid Plate & Engine Guards Modified. Only 4 bolts Remove Skid Plate and Guards
Inside - Turbo Skid Plate & Engine Guards Modified. Only 4 bolts Remove Skid Plate and Guards
Outside - Turbo Skid Plate & Engine Guards Modified
Outside - Turbo Skid Plate & Engine Guards Modified
