Building 908 Gearboxes,CLICK on image to see more

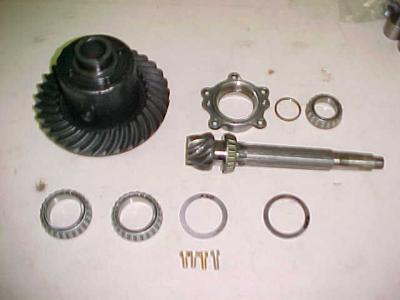

Ring Pinion with Ltd Slip.

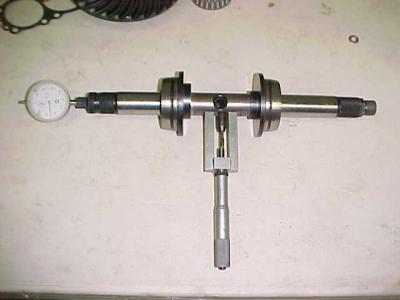

Ring Pinion with Ltd Slip.		 Tool used for setting pinion shaft depth.
Tool used for setting pinion shaft depth.		 Shifting forks and shafts.
Shifting forks and shafts.		 Putting the pinion depth tool into diff hsg.
Putting the pinion depth tool into diff hsg.
Reading pinion depth.
Reading pinion depth.		 Setting the pre load on the pinion shaft bearings.

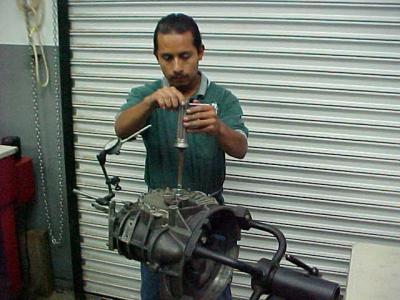

Setting the pre load on the pinion shaft bearings.		 Setting the pre load on the ring gear bearings.
Setting the pre load on the ring gear bearings.		 Setting the back lash on the ring & pinion.
Setting the back lash on the ring & pinion.
Setting the bearing pre load on the main shaft.
Setting the bearing pre load on the main shaft.		 Touque being set on the Main and pinion shaft retainers.
Touque being set on the Main and pinion shaft retainers.		 Gears Syncros bearings sleeves and hubs readly for assembly.
Gears Syncros bearings sleeves and hubs readly for assembly.		 4th & 5th Gear installed.
4th & 5th Gear installed.
2nd 3rd Gear installed.
2nd 3rd Gear installed.		 1st Gear installed.
1st Gear installed.		 908 02 typeTransmission.
908 02 typeTransmission.
